HomeProducts Aluminum Foil Bubble Thermal Insulation Double Aluminium Foil Double Bubble 8mm
Double Aluminium Foil Double Bubble 8mm
Contact Us

E-mail: sales2@silpacking.com
Mob/WhatsApp: 0086 135 6679 6337

  • Features
  • Technical Data
  • Application

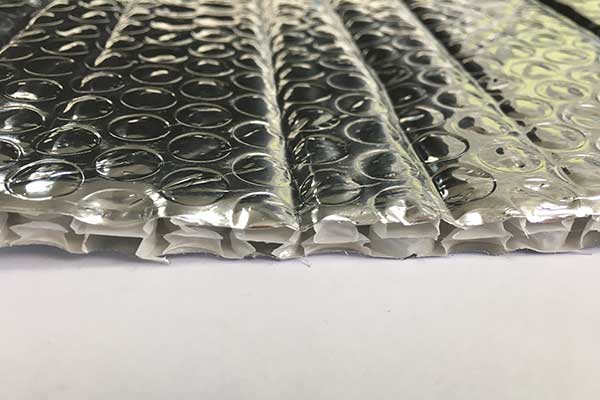

Thickness: 8mm(4mmx2)

High reflectivity, low emittance

Good thermal resistance(R-value)

Good sound proof material

Tough and durable

Clean, fiber-free, eco-friendly

Easy to be installed

Waterproof, perfect vapor barrier material

CUSTOMER PRIVATE LABEL AVAILABLE.
MATERIALS AND LAYERS CAN BE CUSTOMIZD.

Typical Physical Properties

Thickness

Length

Width

Tear Strength

Tensile Strength

Sqms/Roll

6 mm/8mm

30 m

1.2m

3.5LB/Inch

11LB/Inch

36 m2

Max R value

Heat Flow Down(Roof)

Heat Flow Horizontal (Wall)

Heat Flow Up  (Floor)

12.6 m2/*k/w

6.2 m2/*k/w

4.1  m2/*k/w

Thermal Performance

Water Vapor Performance

Application

Reflectivity

Emissivity

WaterProof

Steam Permeability

Temperature

97%

0.03

100%

0.033g/m2hkpa

-50 ºC TO 80ºC




· Roof insulation

· Wall insulation

· Under concrete insulation

· Attic insulation

· Metal building insulation

· Ductwork insulation

· Pipeline insulation

· Bubble wrap

· Container liner

· Box liner

· Thermal wrap of cold chain logistic

· Bubble bag

· Bubble envelope

· Pallet cover

· Garage door insulation
