1.8m Metallied Film Bubble Heat Insulation
Contact Us

E-mail: sales2@silpacking.com
Mob/WhatsApp: 0086 135 6679 6337

  • Features
  • Technical Data
  • Application
Thickness: 2.5mm~3mm

High reflectivity, low emittance

Good thermal resistance(R-value)

Good sound proof material

Tough and durable

Clean, fiber-free, eco-friendly

Easy to be installed

Waterproof, perfect vapor barrier material

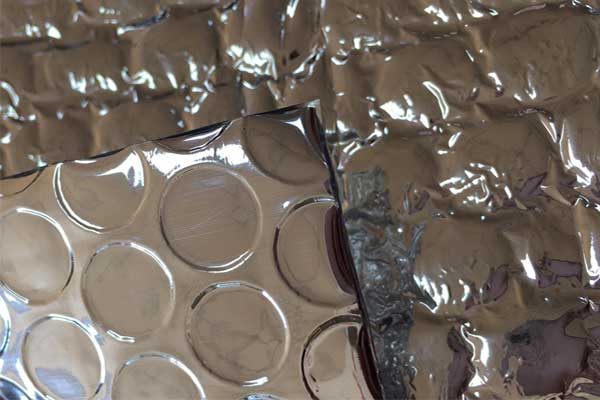

Material structure

ALU+AIR BUBBLE+ALU

Roll dimension

1.2m X 40m

Aluminum foil

7 microns

Bubble size

10mm x 4mm

Weight per roll

 11.28kgs

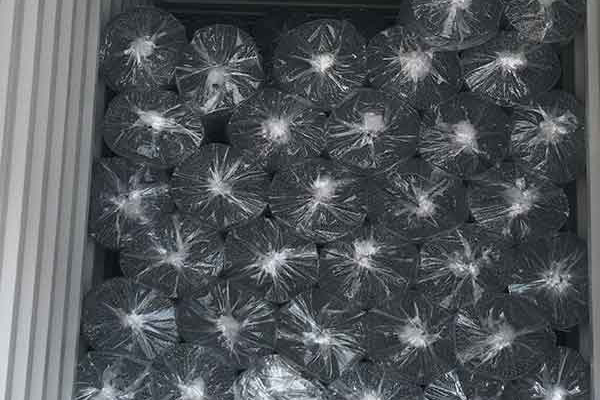

Loading quantity

160 rolls / 20 GP

400 rolls / 40 HQ



Technical  Parameters

Properties

Unit

Value

Temperature range

 Fahrenheit     (ASTM C411)

-76 ~+212

Fire-proof grade

/

Class A /  Class 1

Emissivity

COEF

0.03

Thermal conductivity

W/m0

0.032 - 0.036

Reflectivity

97

Vapor transmission

g/m2kpa

0.012

Corrosion



Doesn't genterated



· Roof insulation

· Wall insulation

· Under concrete insulation

· Attic insulation

· Metal building insulation

· Ductwork insulation

· Pipeline insulation

· Bubble wrap

· Container liner

· Box liner

· Thermal wrap of cold chain logistic

· Bubble bag

· Bubble envelope

· Pallet cover

· Garage door insulation
